Here are the specifications for a Full Automatic Aluminum Steel Door Frame Making Machine:
# General Specifications
1. Machine Type: Full Automatic Door Frame Making Machine
2. Material: Aluminum, Steel
3. Production Capacity: 500-1000 pieces per shift (8 hours)
4. Machine Size: 12000mm x 1500mm x 2000mm (L x W x H)
5. Machine Weight: 8000-10000 kg
6. Power Consumption: 20-30 kW
# Main Components

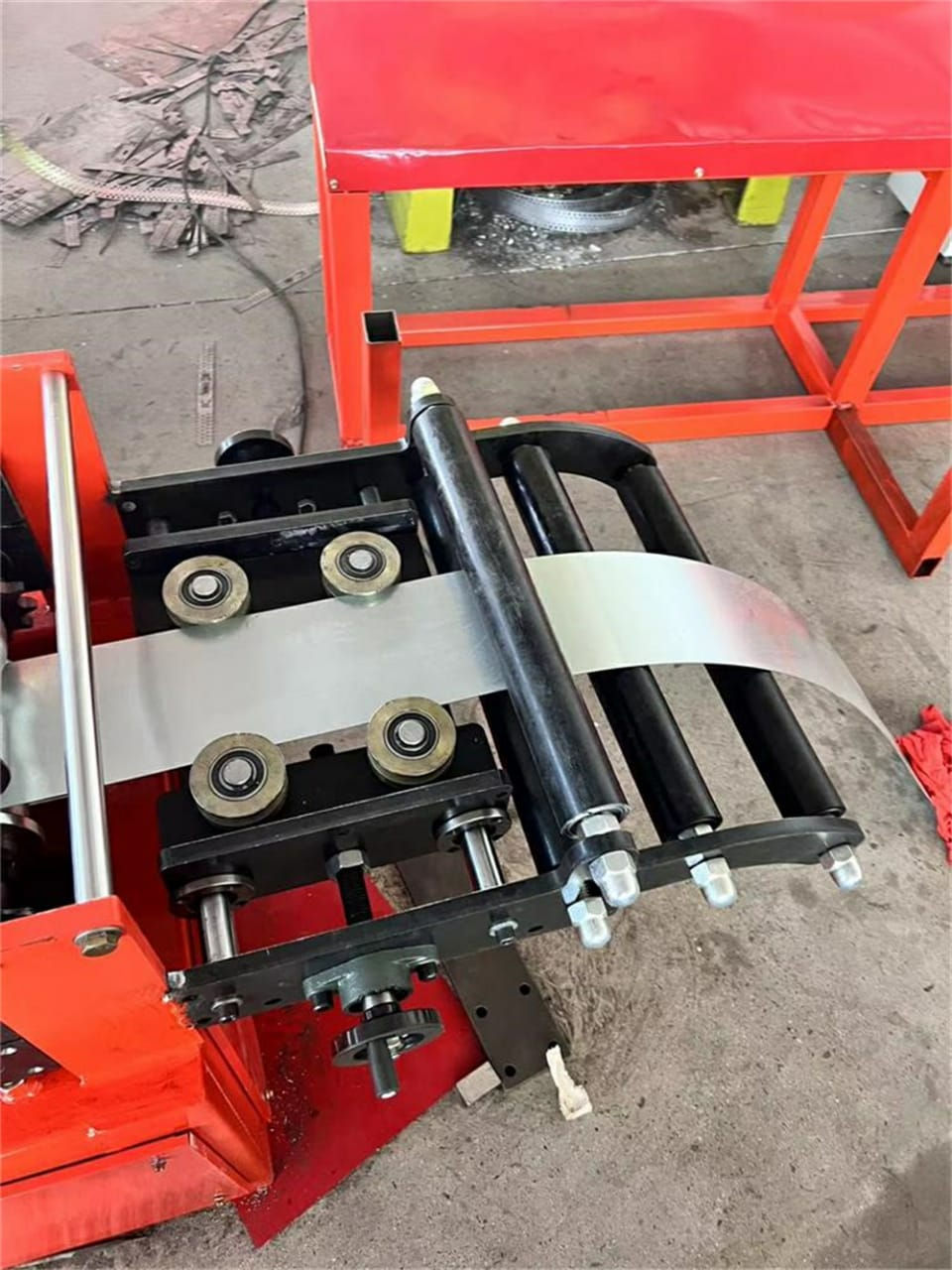

1. Decoiler: Automatic decoiler with hydraulic expansion
2. Leveling Machine: 3-roller leveling machine for flatness correction
3. Punching Machine: Hydraulic punching machine with 10-20 tons pressure
4. Cutting Machine: Automatic cutting machine with servo motor control
5. Frame Roll Forming Machine: 12-18 stations roll forming machine with PLC control
6. Hinge Punching Machine: Automatic hinge punching machine with 5-10 tons pressure
7. Assembling and Welding Machine: Automatic assembling and welding machine with robotic arm
# Technical Parameters
1. Material Thickness: 0.8-2.5 mm (aluminum), 0.5-2.0 mm (steel)
2. Material Width: 100-300 mm
3. Frame Size: 800-1200 mm (width), 2000-2500 mm (height)
4. Punching Speed: 10-20 times per minute
5. Cutting Speed: 10-20 times per minute
6. Roll Forming Speed: 10-20 meters per minute
7. Hinge Punching Speed: 5-10 times per minute
# Control System
1. PLC Control: Siemens or Mitsubishi PLC control system
2. Touch Screen: 10-15 inch touch screen display
3. Servo Motor: Servo motor control for precise movement and positioning
# Safety Features
1. Safety Fence: Safety fence with interlock system
2. Emergency Stop: Emergency stop button
3. Safety Sensors: Safety sensors for detecting obstacles
# Optional Features
1. Automatic Loading and Unloading System
2. Robotic Welding System
3. Laser Cutting System
4. Automatic Hinge Assembly System
