Ridge Cap Roll Forming Machine
Suitable for thickness 0.3-0.8mm
Speed 0-15m/min or 3-4m/min for step ridge cap
Accurate size, seamless lap joint
Various shapes can be customized
Automatic PLC control system
TypeColored or galvanized steel sheet
Material Thickness（mm）0.3-0.7
Yield stress（Mpa）230-300
Max. Forming speed（m/min）0-15m/min
Roller material 45# steel with hard chrome treatment
Roller driven type Chain transmission
Controller
PLC Operation
Touch screen and button Hydraulic system pressure（Mpa）
12 Hydraulic station motor power（KW）
4 Main motor power（KW）
3 Total weight（Kg）About 4000
machine.

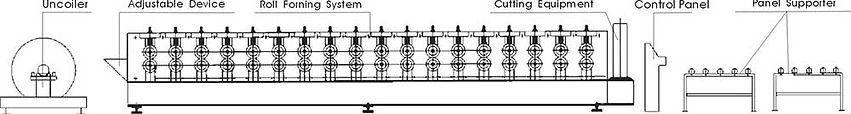

PROCESS FLOW
